Description

Specifications:

• Flow rates: up to 300.000 m³/h
• Pressure: up to 1.500 Pa
• Belt drive, direct – drive, or coupling drive
• Max temperature values: -20 °C — +300 °C

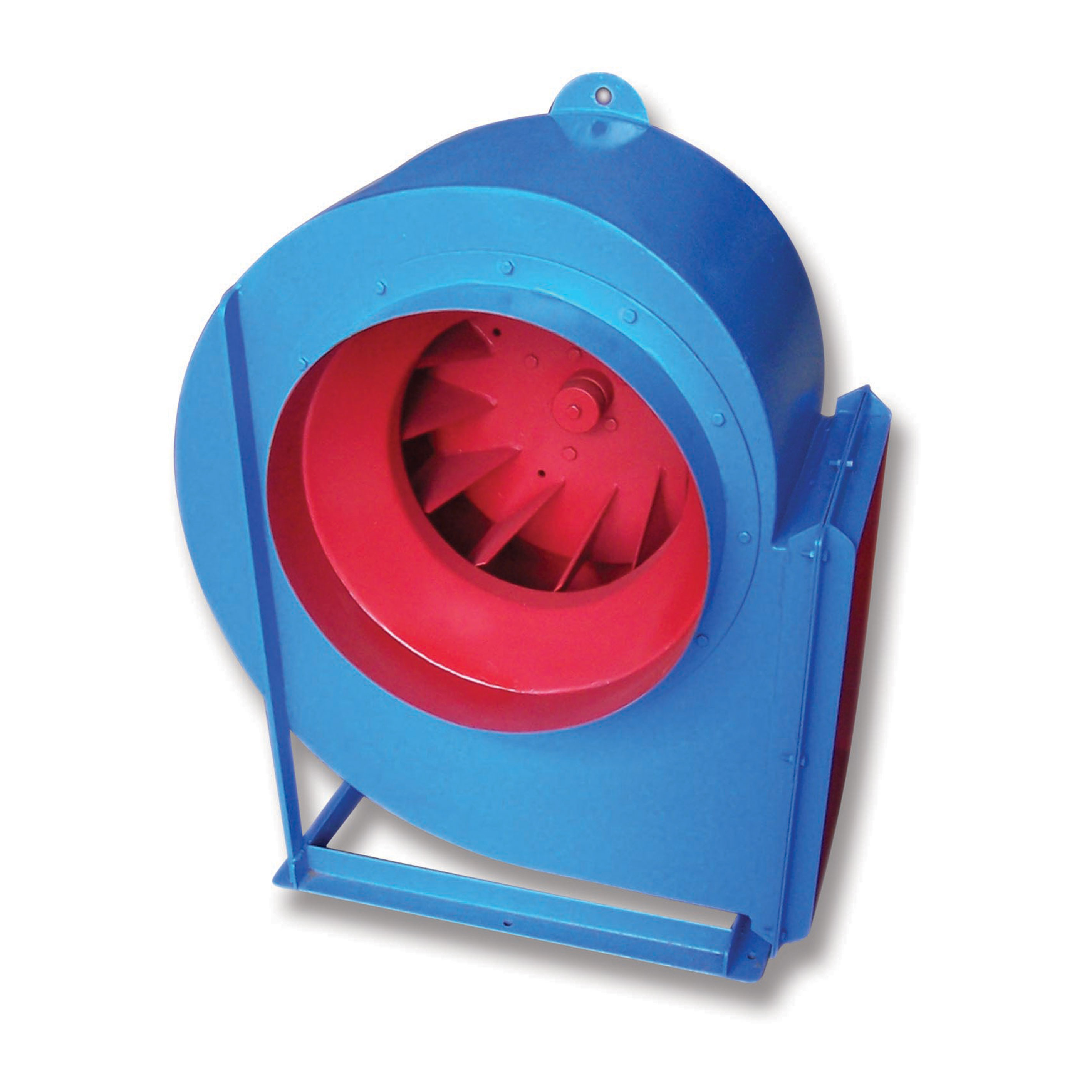

• Special Z profile blade design causes no balance problem and provides long working performance
• Sheet stell casing
• IE2 high efficiency motors, 3 -phase, 400 V, 50 Hz

On request:

• IE3 premium efficiency motors
• 60 Hz models
• Special design fan up to 550 °C for air transmission
• Stainless steel or galvanized coating casing

Fields of Applications:

• Specifically designed for working without problems at the hard conditions of paintshops,
• At spraying booths,
• Used in the ventilation systems containing adhesive materials or sticky fume

Industries used in:

• Carpentery / Woodworks
• Paintshops
