Description

Specifications:

• Flow rates: up to 150.000 m³/h
• Pressure: up to 600 Pa
• Direct – drive
• Max temperature values: -20 °C — +120 °C

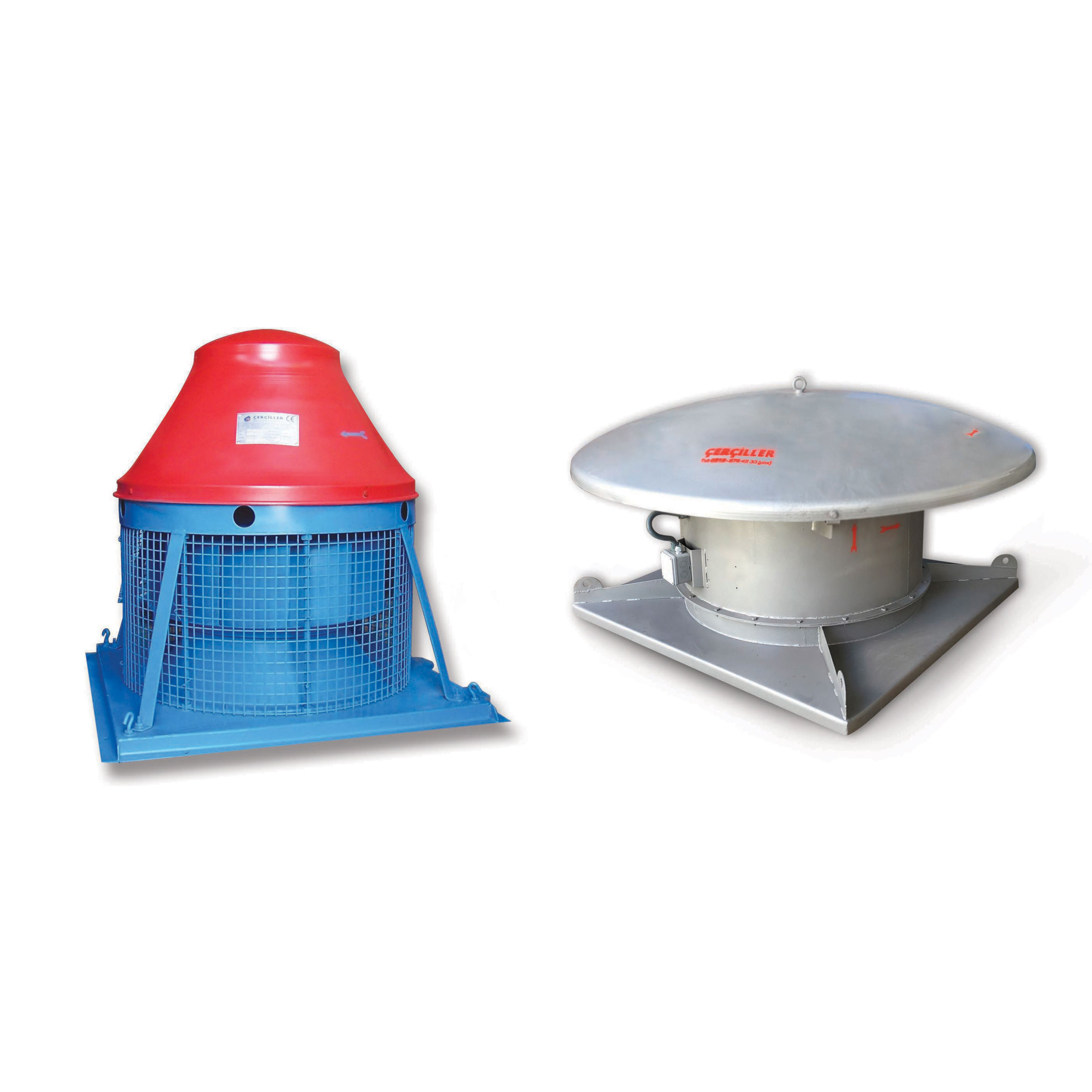

• Manufactured as 2 types:
  • Roof – mounted axial extractor
  • Roof – mounted centrifugal extractor
  • Roof – mounted axial extractor has 3 types of impellers:
    • Cast aluminum impeller
    • Plastic impeller
    • Sheet steel impeller
  • Roof – mounted centrifugal extractor has one type of impeller:
    • Backward curved impeller made of sheet steel
• Sheet stell casing
• IE2 high efficiency motors, 3 -phase, 400 V, 50 Hz

On request:

• IE3 premium efficiency motors
• 60 Hz models
• Stainless steel or galvanized coating casing
• Special production resistance up to 250 °C

Fields of Applications:

• used for the general ventilation of industrial sites in factories
• used for ventilation provided by mounting on roof or chimney for air circulation
• used for transferring the exhaust gas to the atmosphere via roof or chimney.
• Underground car parks, bunkers, workshops etc..

Industries used in:

• In all types of industries
